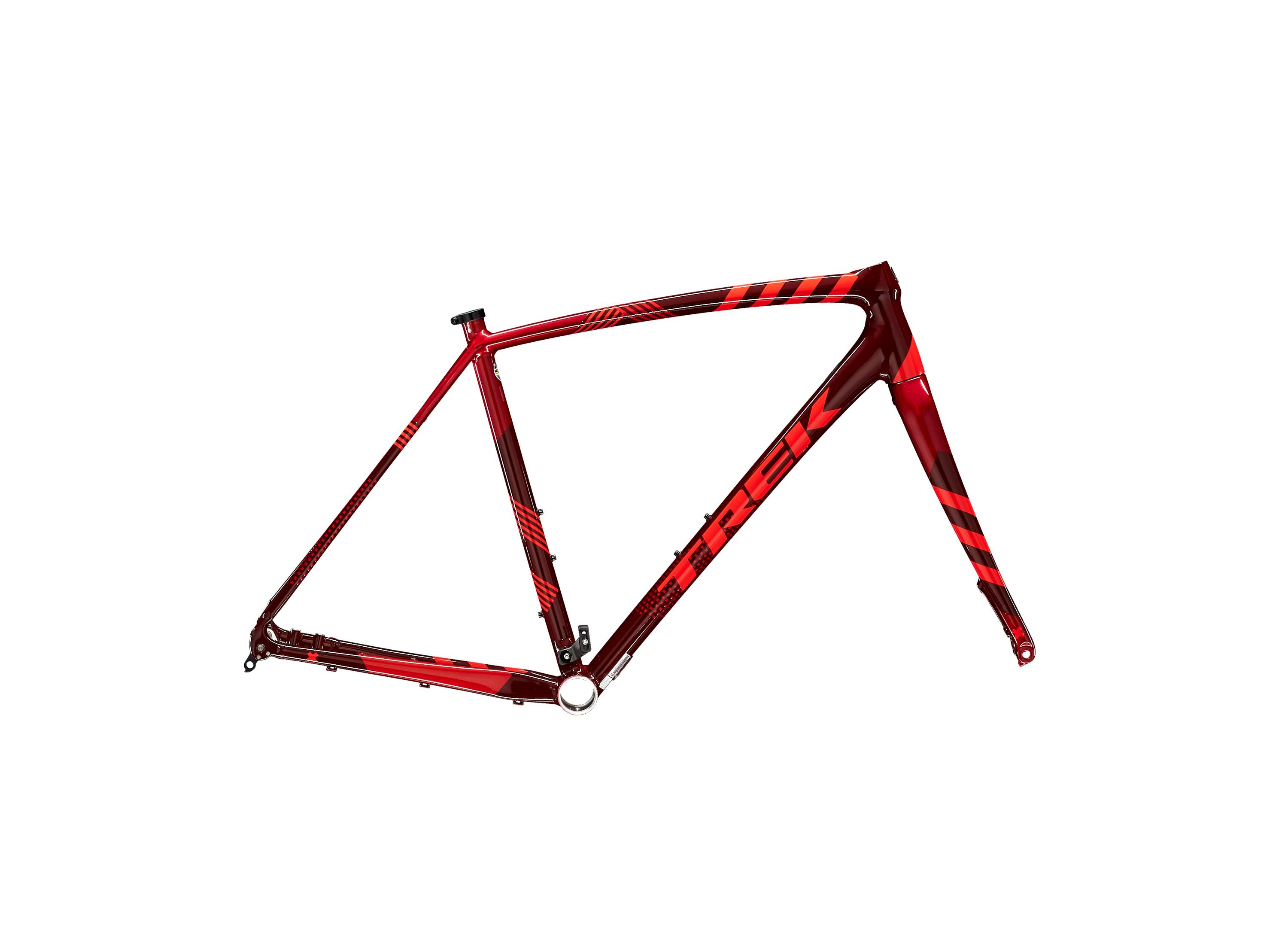

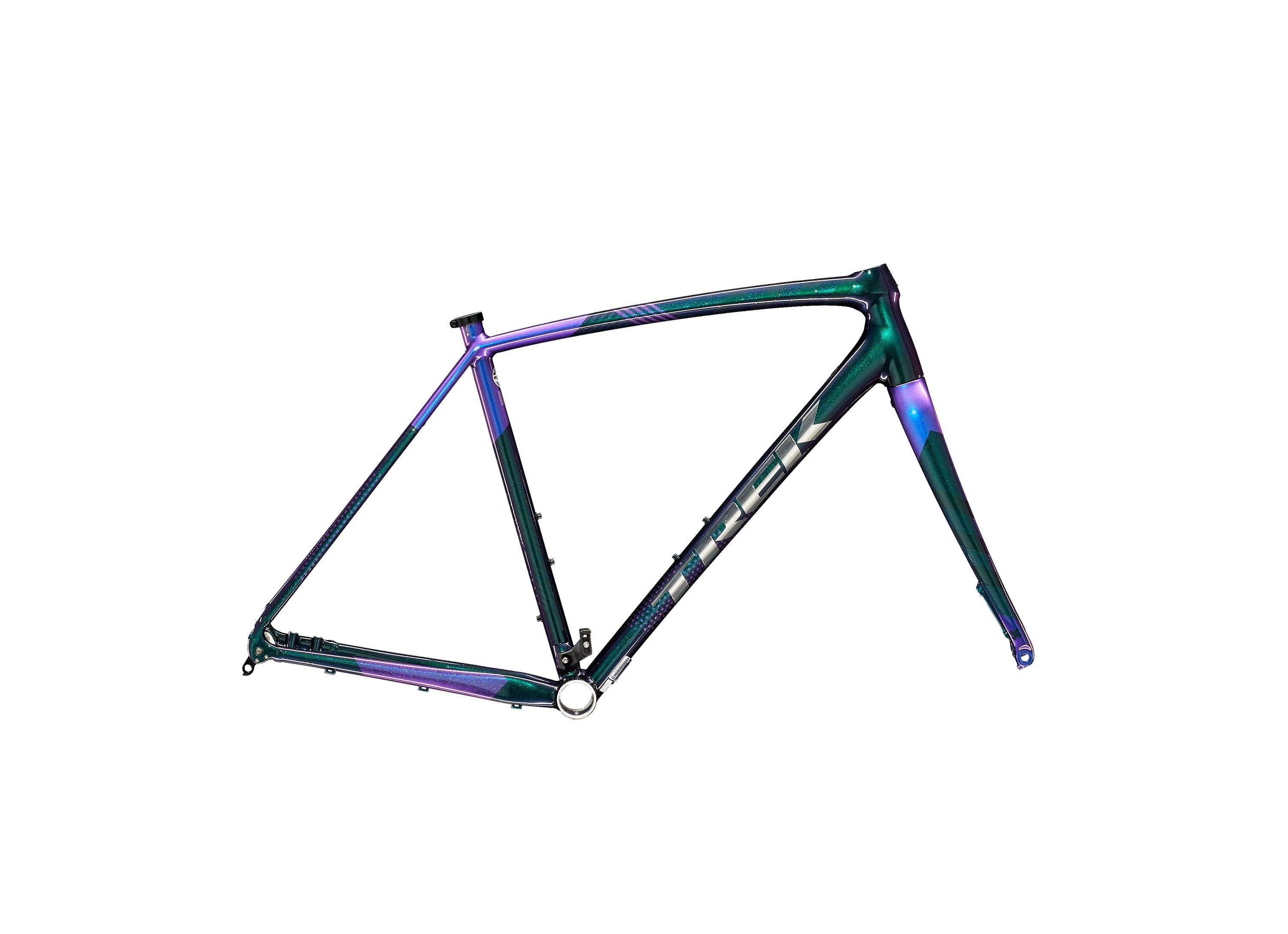

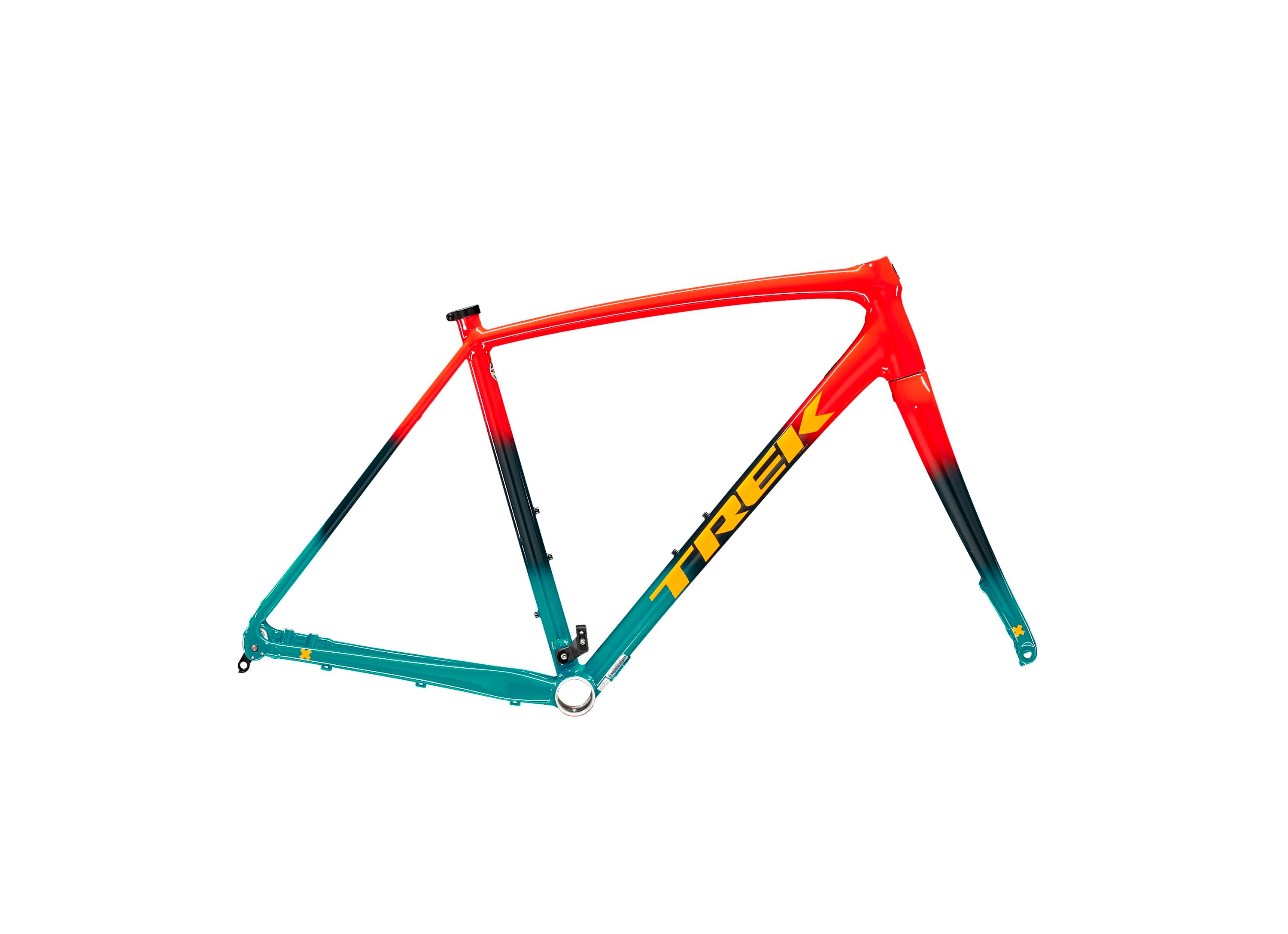

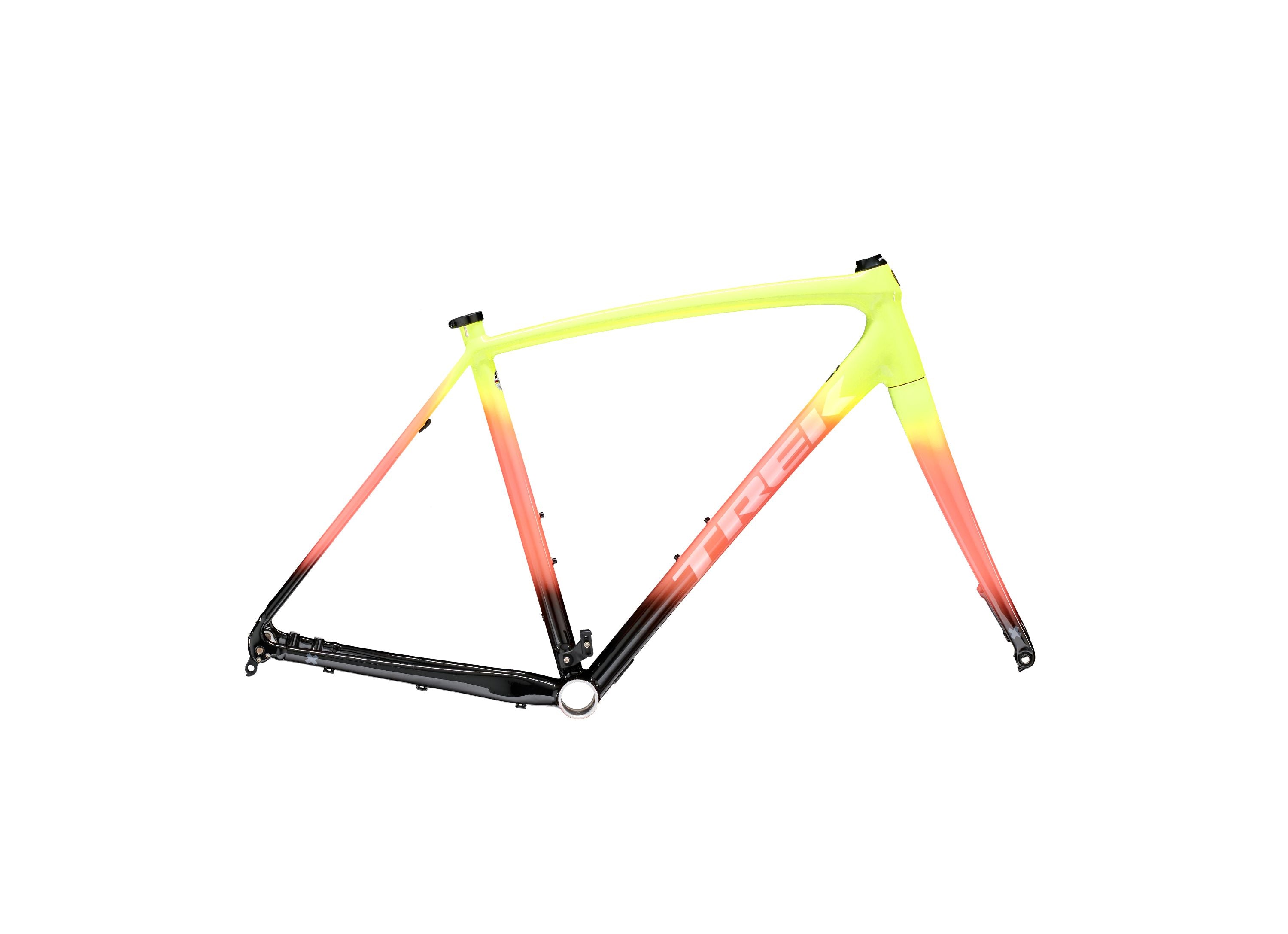

Trek Crockett Disc Frameset

Crockett has made a name for itself in world's biggest cyclocross races, including the World Cup. But it's also right at home on your local circuit or gravel roads. Wherever it's ridden, Crockett Disc frameset likes to go fast and have a good time. Its advanced alloy frame looks and handles like carbon for a solid start on the cyclocross bike of your dreams.

• Carbon looks and handling, alloy price point: Invisible Weld Technology and shaped tubes for sleek looks, light weight, and incredible handling
• The full carbon Trek Cross fork soaks up the chatter from rough roads, gravel, and cyclocross courses
• Internal cable routing with Control Freak Cable Management keeps things smooth, quiet, and clean
• It's ready for any build you can imagine for your XC pursuits

Fork	Trek Cross carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 395mm axle-to-crown, 12x100mm thru axle
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever

Geometry Chart

B B Drop	7
Chainstay Length	42.5
Eff Top Tube	50.7
Frame Reach	37.1
Frame Size Number	47 cm
Frame Stack	51.9
Head Angle	70.8°
Head Tube Length	9.5
Offset	4.5
Seat Tube	44.4
Seat Tube Angle	75.3°
Standover	72.4
Trail	7.5
Wheelbase	99.5
Wheel Size	700c
