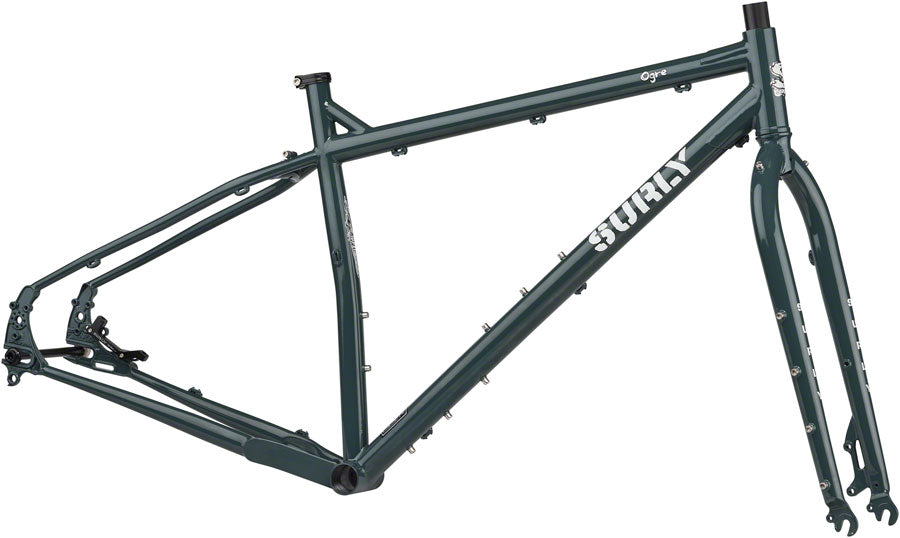

Surly Ogre Frameset - 29" Steel Orlok's Shadow Large

The Ogre can get you to your job during the week then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre brings several sensible features to the 29er platform including horizontal slotted dropouts with Gnot-Boost spacing a tweaked non-suspension corrected geometry and a beefy tire clearance.

100% Surly Chromoly steel double-butted main triangle

TIG-welded Horizontal slotted with derailleur hanger Gnot-Boost spacing allows the use of 135mm QR hub 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for fenders racks and Surly trailer mounts

Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks fenders and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot

Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes)

Frame is E.D. coated for increased life expectancy

Tire clearance for 29 x 2.5" or 27.5 x 3"

Rear Axle	12mm Thru x 142mm
Brake Type	Disc
TT (Effective)	615
Fork Type	Rigid
Frame Material	Steel
Frame Type	Rigid
Front Axle	QR x 100mm
Color	Orlok's Shadow
Mfg Size	Large
Platform	Ogre
Wheel Size	29"
Defined Color	Green
Size	Large
