Soma

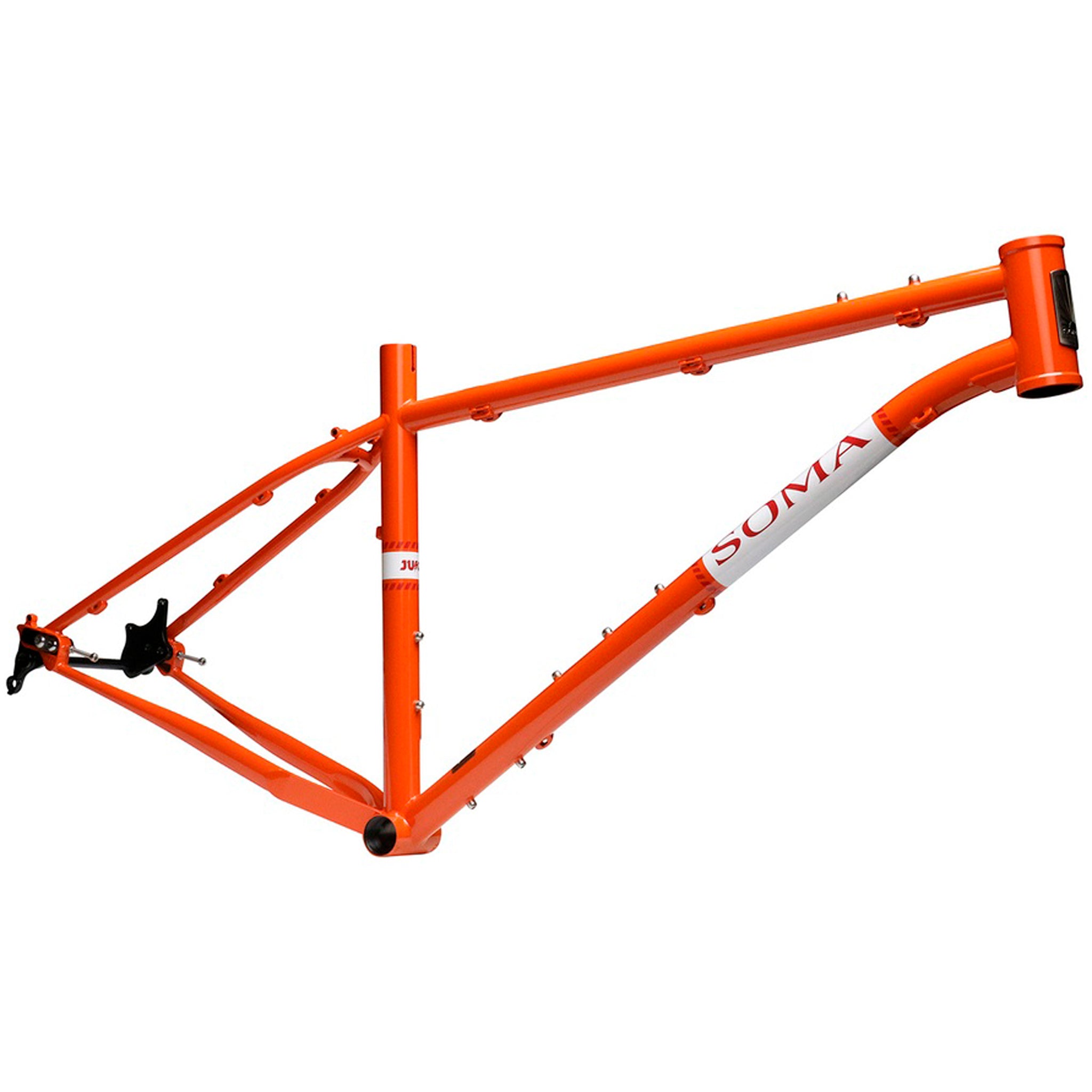

Soma Juice 29er Frame Small Pumpkin Orange
$699.95
/
Shipping calculated at checkout.
- Tange Prestige heat-treated butted CrMo steel, butted CrMo rear end
- Geometry is optimized for 100mm travel 29" forks and will handle 120mm forks
- IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
- Boost 12 x 148 thru-axle hub standard (thru-axle included), S-bend seatstays and chainstays, rear rack and fender eyelets
- 3 pack mount and water bottle mounts on downtube. (LG and XL size have a set of water bottle mounts on the seat tube as well. Seat tube bosses are left off the MD and SM to better fit long dropper posts)
- ED coating under paint and inside tubes to resist rust
- CNC-machined 44mm headtube: Will take 1-1/8" steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
- 34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post(rigid) recommended
- Recommended tire size: 29" x 2.4" (or 27.5 x 2.8”)
- Wt: 6.2 lbs. (MD)
- Figures based on non-specific 29"x2.2" tires and a 100mm travel fork
| Model | Juice |
| Size | Small |
| Seat Tube (C | T)-390mm |
| C | C)-587.5mm |
| Chainstay | 437mm |
| Head Angle | 67.2 Deg |
| Seat Angle | 73.2 Deg |
| Headset | ZS44 / ZS44/EC44 |
| Bottom Bracket | 73mm |
| Seatpost | 31.6mm |
| Front Derail | 34.9mm |
| Dropout | 12x148mm Boost |
| Color | Pumpkin Orange |
