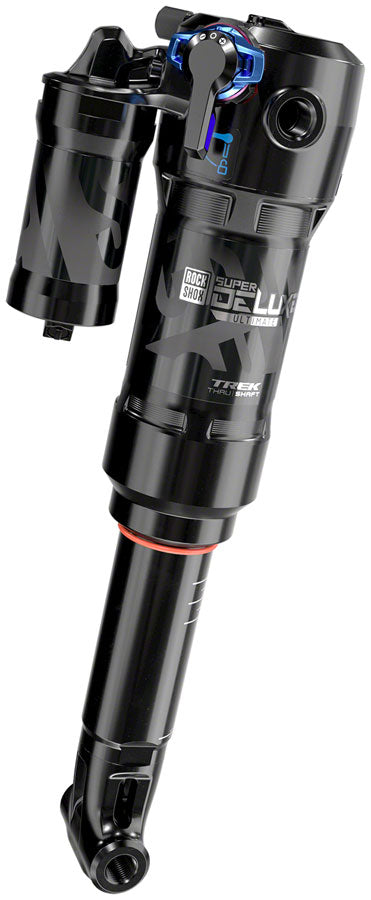

RockShox Super Deluxe Thru Shaft RCT Rear Shock - 230 x 57.5mm Medium Reb/Comp 380lb L/O Force Trunnion C1

When the engineering superpowers of Trek and RockShox combine the results are anything but ordinary. Completely reimagined the Super Deluxe Ultimate ThruShaft was created with a go anywhere ride anything attitude. The ideal match for the next generation of hard hitting all-mountain enduro bikes.

Trek's exclusive ThruShaft design responds to changes in terrain faster than any other shock on the market

Versatility is key for a go anywhere do anything attitude. Dial it in with redesigned Low Speed Compression adjustment offering three options to find your perfect match to seize the day

Featuring an oversized thermal compensator for greater temperature stability and consistent suspension feel on those extra long extra demanding descents

Time to adjust. With a “fully checked” damper your compression settings work independently not to be bothered by each click of Rebound

Shock controls optimized for frame integration and rider ergonomics

MegNeg air can is not compatible with MY21 Super Deluxe Ultimate ThruShaft

Only compatible with purple tokens for positive and negative air spring tuning

Stroke (mm)	57.5
Lockout Switch	Shock Mounted Switch
Eyelet Diameter (mm)	Trunnion, 12.7
External Adjustments	Low Speed Compression Damping
Positive Spring	Air
Eye to eye length (mm)	230
Stroke Length	57.5Mm
