Ritchey

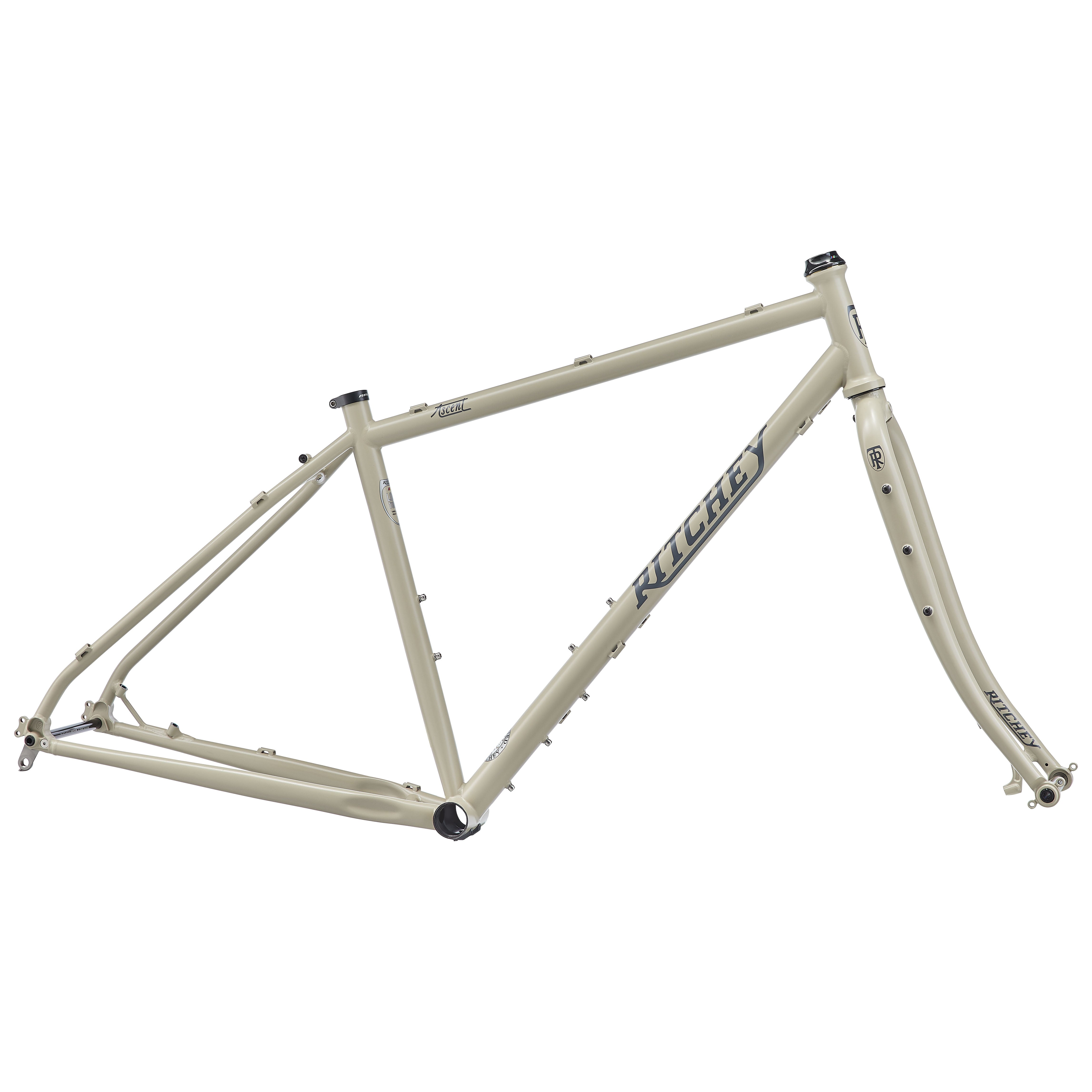

Ritchey Ascent Disc Adventure Frameset Desert Dust X- Large
$1,539.00
/
Sold Out
Shipping calculated at checkout.
- Highly versatile adventure and bike backing frameset
- - Includes steel Ritchey fork with 110x15mm boost axle spacing, 1-1/8" straight steerer and 435mm axle-to-crown
- - Frame and fork are equipped with multi-purpose rack and fender bosses as well as dynamo light mounts
- - Designed to accommodate 1x or 2x chainrings
- - Constructed from Ritchey Logic triple-butted steel tubing
- - Includes WCS integrated drop-in headset
- - 160mm post-mount disc brake (180mm max rotor)
- - Fits up to 27.5x2.6” or 29x2.6” tires
- - Features a replaceable stainless steel derailleur hanger
- - Frame weight: 2400g (medium), fork weight: 1125g (uncut steerer)
| Size | X-Large |
| Top Tube (Effective) | 590mm |
| Chainstay | 463mm |
| Head Angle | 71 Deg |
| Seat Angle | 73 Deg |
| Headset | IS42/28.6 / IS42/30 |
| Bottom Bracket | 73mm |
| Seatpost | 27.2mm |
| Front Derail | 28.6mm |
| BB Drop | 68mm |
| Stand Over | 851mm |
| Dropout | 12x148mm Boost |
| Color | Desert Dust |
