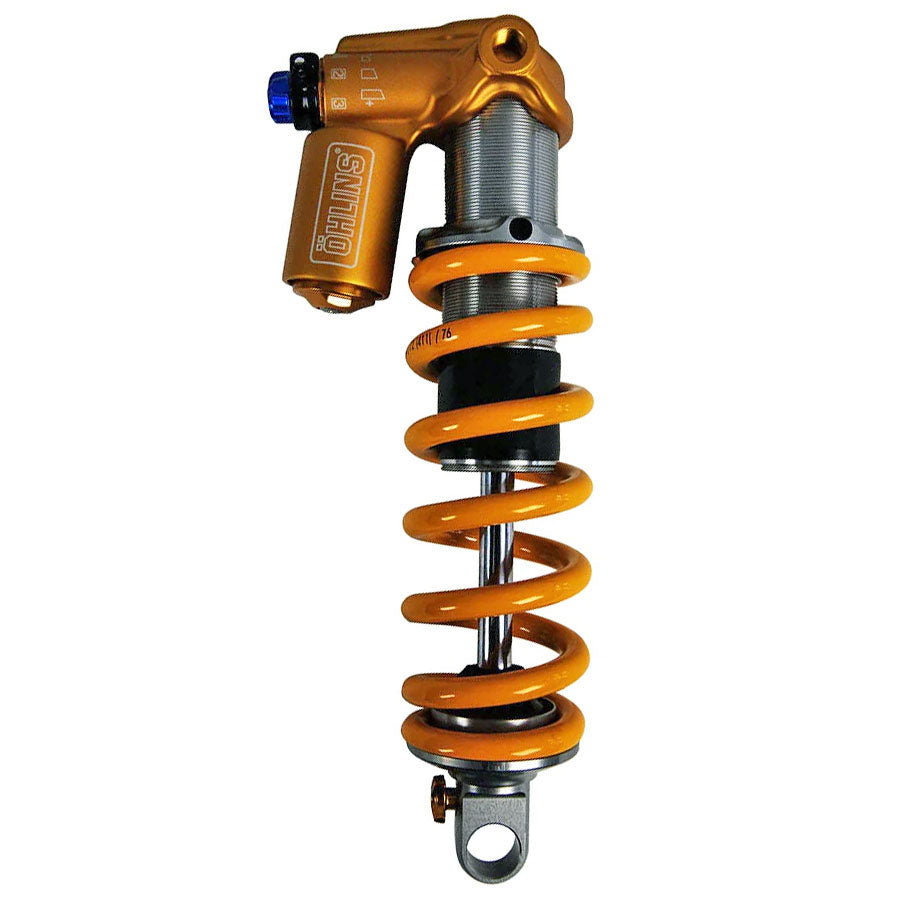

Ohlins TTX22 M.2 PB Coil Shock 57.5/60/62.5/65 x 230mm
Ohlins TTX22 M.2 PB Coil Shock 57.5/60/62.5/65 x 230mm

Ohlins

Ohlins TTX22 M.2 PB Coil Shock 57.5/60/62.5/65 x 230mm

$845.00 Sold Out
Shipping calculated at checkout.
  • World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range
  • Improved bottom out performance, courtesy of a newly designed bump rubber
  • Possible to simply adjust stroke with the three 2.5 mm spacers included in the box
  • External 3 level high-speed compression adjustment
  • External 16 click low-speed compression adjustment
  • External 7 click rebound adjustment
  • Stability mode to reduce suspension movement during less technical climbs
  • Suitable for the lightweight springs
  • Mounting hardware sold separately, end eyes are 15mm
  • 486g
Model TTX22M.2 Coil Piggy Back
Stroke 57.5/60/62.5/65mm
Eye Eye-230mm
