Ohlins

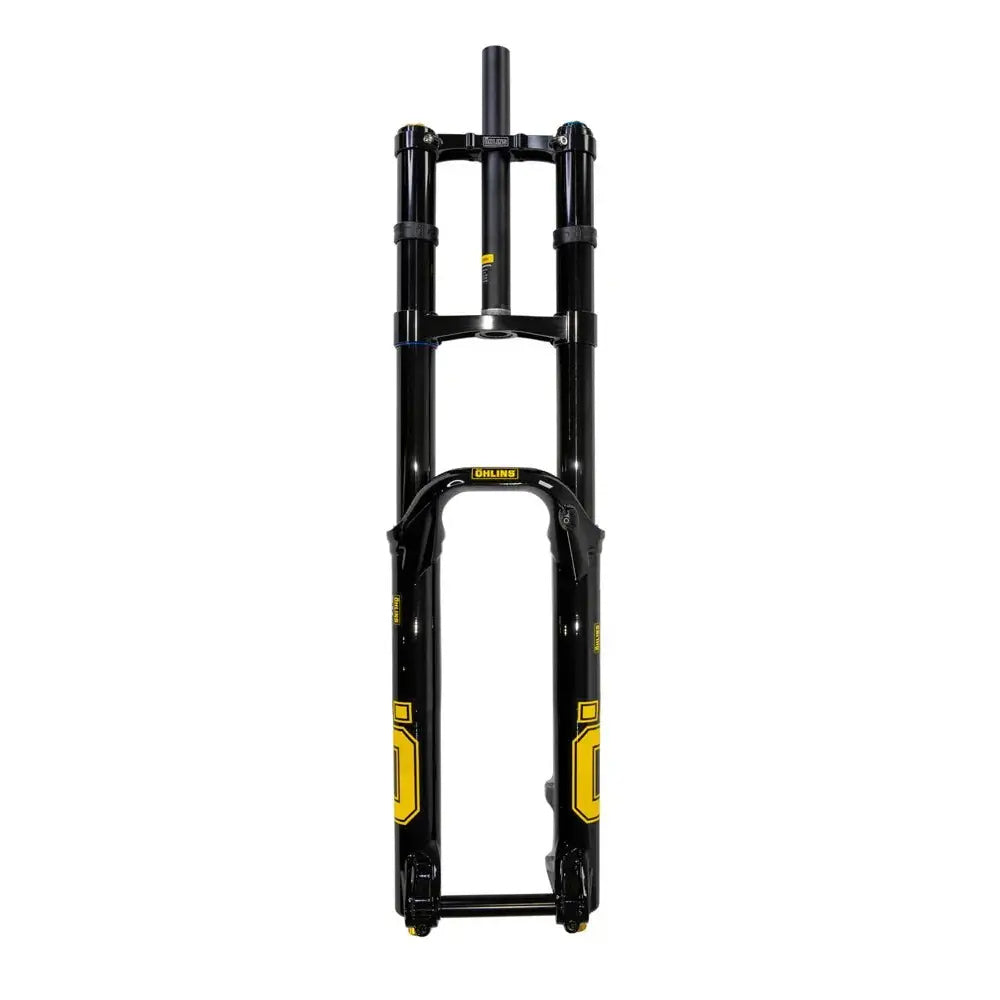

Ohlins DH38 TTX18 M.2 Coil Fork 200mm Black
$1,675.00
/
Shipping calculated at checkout.
- TTX18 damper's 18mm piston provides optimal small bump sensitivity
- - 15 clicks of low speed compression and low speed rebound
- - 5 clicks of high speed compression
- - Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up
- - Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out
- - 74mm post mount disc brake mount
- - 20x110mm DH Boost thru-axle
- - Max tire size: 29x2.8" or 27.5x3.0"
- - E-Bike approved
- - (CROWN NOT INCLUDED)
| Model | DH Coil M.2 |
| Wheel Size | 27.5"/29" |
| Steerer (Stem/Race) | Steerer and Crown Sold Separately |
| Offset | 46-58mm |
| Travel | 200mm |
| Spring Type | Coil |
| Brake Mount | Disc Only (PM-200) |
| Dropout | 20x110mm Boost |
| Weight | 2715g (without Crowns and Steer Tube) |
| Color | Black |
| Suspension Type | Coil |
Pickup currently unavailable at Gio's Smithville
Estimate shipping
Features
