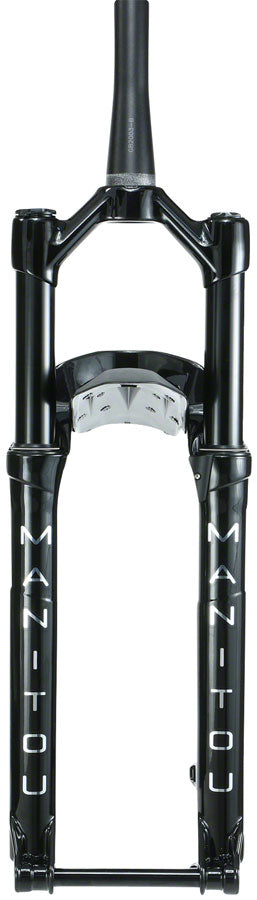

Manitou R7 Expert Suspension Fork - 29" 120 mm 15 x 110 mm 44mm Offset Matte BLK

The R7 Expert is a fast XC racing fork that can hang with the trail riding crowd. A stiff light 32mm-stanchion chassis and the VTT damper deliver maximum terrain sensitivity in rocky rutted sections and maximum efficiency during all-out pedaling efforts.

32mm black anodized stanchions

Expert Air Spring

VTT Damper w/ three-position compression and rebound adjustability

HexLock SL thru-axle provides a strong wheel connection while remaining one of the simplest wheel removal/installations possible

Low-friction dust seals

Reverse-arch casting

Steerer Type	Tapered
Defined Color	Black
Positive Spring	Air
Wheel Size	29"
Offset	44
External Adjustments	Rebound Damping
Color	Matte Black
Lockout Switch	None
Negative Spring	Air
S.H.I.S. Stem Clamp Diameter	28.6
Travel (mm)	120
Steerer Tube Length (mm)	251
Stanchion Diameter	32
Axle to Crown Length	525
Crown Race	40
Front Axle	15mm Thru x 110mm
Maximum Tire Width	68
Brake Type	Post Mount 160
