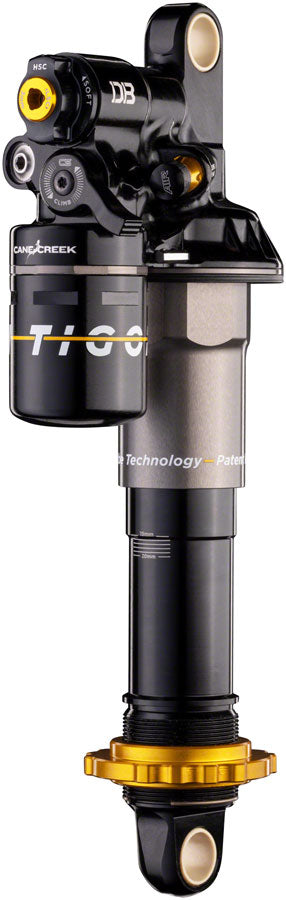

Cane Creek Tigon Rear Shock - 210 x 55

The Tigon rear shock utilizes Cane Creek's DB Twin Tube design that combines the sensitivity of a coil shock with the tunable support of an air spring – to fuel your most creative and playful riding yet. Tigon tracks the ground and grips like a coil shock but thanks to RAMP Tube Technology it also offers the mid-stroke and bottom out support that is often required from an air shock. Both of these benefits are now delivered in an entirely new layout that better withstands side-loading and buckling forces that can harm traditional coil shocks. Want a shock that provides sensitivity and grip? Tigon delivers.

RAMP Tube Technology allows riders to add 20-35% more progression than typical coil shocks (30psi max)

Using a basic shock pump riders can now tune the support of their coil shock by adding pressure to the RAMP Tube. This added air chamber increases the progression of the shock and gives all the mid-stroke and bottom out support that you may want

Significantly increased strength due to the bracing provided by RAMP Tube

Main coil spring allows Tigon to offer incredible grip and ground-tracking sensitivity

Coil sensitivity with air support and DB Twin Tube damping technology

Available adjustments include: RAMP Tube independent high and low-speed compression low-speed rebound 2 position Climb Switch

Compatible with VALT Coil springs sold separately

Stroke (mm)	55
Lockout Switch	Climb Switch
Metric	Yes
Weight	210
Eyelet Diameter (mm)	12.7
External Adjustments	Coil Preload
Positive Spring	Coil
Eye to eye length (mm)	210
