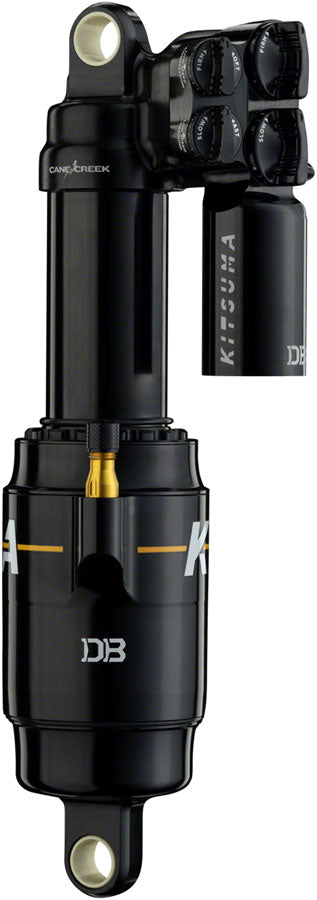

Cane Creek Kitsuma Air Rear Shock - 230 x 65mm Standard Mount Black 2nd Gen

The Cane Creek Kitsuma Air 2nd Gen rear shock is built to descend. It hugs the ground on the roughest and steepest trails giving you maximum grip a planted feel and allows you to go faster thanks to a more personalized tune. It’s the only 4-way adjustable shock that’s tunable by hand - making it easier to move through the setup process quickly and get back to ripping down the trail. Hand-built and individually dyno tested in Fletcher NC USA

Single-turn dials on all adjustments with laser-etched position marks for faster easier and more intuitive tuning

Easy-turn dials feature machined grooves for precise feel

Higher Max HSR damping provides greater control on big hits hard compressions take offs and landings

Lower Min HSC damping provides more plush on abrupt impacts and chunky trails

Damper features a twin-tube independent high and low speed compression and rebound circuits

Cane Creek patented 3-position Climb Switch technology controls both compression and rebound movement at the same time effectively eliminating pedal bob and shores up the shock from both “ends” instead of just one – but still leaves just enough freedom for the shock to move over significant bumps in the trail

The Kitsuma Climb Switch has an additional position that locks out the shock entirely for long self-shuttled climbing days or paved rides to the trail head

Valve seats and damper tube materials are specially designed to offer exceptional reliability

Stroke (mm)	65
Lockout Switch	Climb Switch
Eyelet Diameter (mm)	15
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	230
Stroke Length	230Mm
Eye To Eye Length	65Mm
