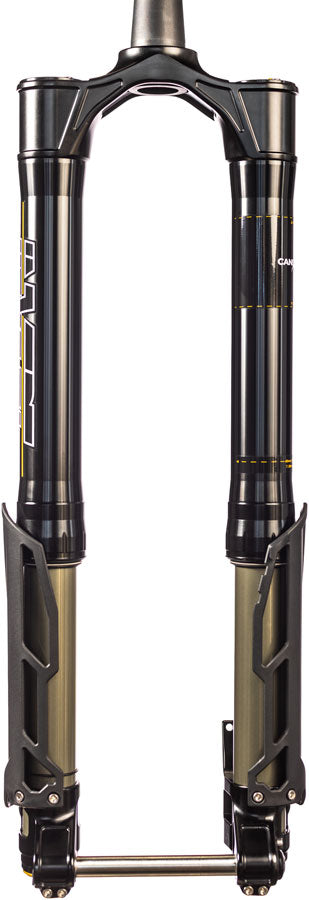

Cane Creek Invert Enduro Suspension Fork - 29" 160 mm 44 mm Offset 15 x 110 mm BLK

Invert Enduro unlocks dirt bike confidence on your mountain bike. It brings the traction and smoothness of moto-style inverted forks to more riders with less cost and hassle. It’s the kind of game-changing component that will have you unlocking the trails and features you’ve dreamed of checking off.

By placing the larger stiffer tubes up top and the bushings closer to the axle inverted forks better resist the fore/aft flex that causes binding friction and chatter

Inverted design also offers significantly more front wheel traction by allowing the tire to swim - not skip - through rough loose and off-camber sections

In addition to analog bikes Invert Enduro chassis was built to handle the weight power and speed of modern e-MTBs

45mm diameter upper tubes paired with 38mm lower tubes and our SquareLoc axle system make the Invert one of the most robust single crown enduro forks available

Proven Helm MKII monotube damper features adjustments for HSC LSC LSR

Cartridge style air spring with self-equalizing charge port design for lowest initial force and proven 2nd Gen Helm MKII monotube damper

17-4 stainless steel 15mm x 110mm SquareLoc axle keys to dropouts and secured with pinch bolts for high level of torsional stiffness

Included SideSwipe guards are shifted to the side of the fork where MTB forks

Steerer Type	Tapered
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	160
Offset	44
Axle to Crown Length	576.5
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66.040000000000006
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black
Crown Race	40
Weight	2795
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	38
